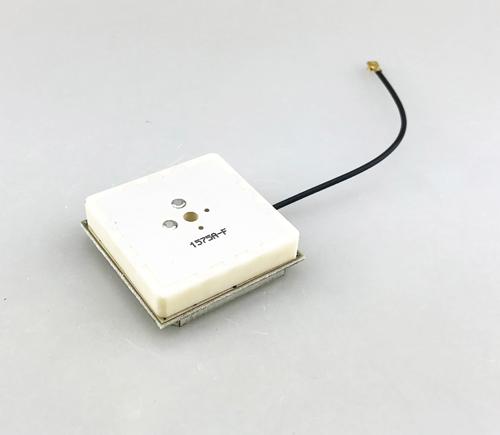

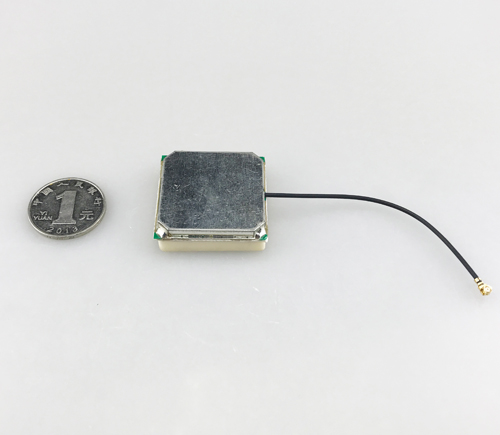

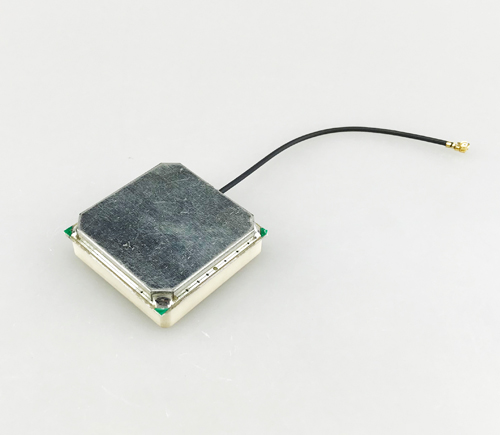

JCA539北斗GPS内置接收天线

yle="width: 1382px; height: 863px;" />

Item Specifications

Antenna Frequency Range 1561~1602MHz

Polarization RHCP

Gain 5dBic@PCB（Zenith）

V.S.W.R ＜1.5

Impendance 50Ω

Dimension 33.5*33.5*6mm

LNA Gain 28±2dB

Noise Figure ≤1.5dB

Supply Voltage 3~5V DC

Current Consumption ＜20mA

V.S.W.R ＜2.0

Mechanical Cable RG174 or others

Connector -

Environmental Operating Temperature -40℃~+85℃

Relative Humidity Up to 75%

Vibration 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly ROHS Compliant
